Progress Poster (2012)

This is a poster showing the progress of the CFT Project. Kids these days (and non-academics) call them ‘infographics’, but this has too much actual information to be one. And it's authoritative, or at least it was when it was generated. The poster was generated semi-automatically using scripts that counted stuff in the code and schematics. It's interesting to note that the poster still has the old logo and some of the old hardware plans: separate debugging board and front panel board, among others, and just three processor boards. Things have changed (and progressed) a lot since!

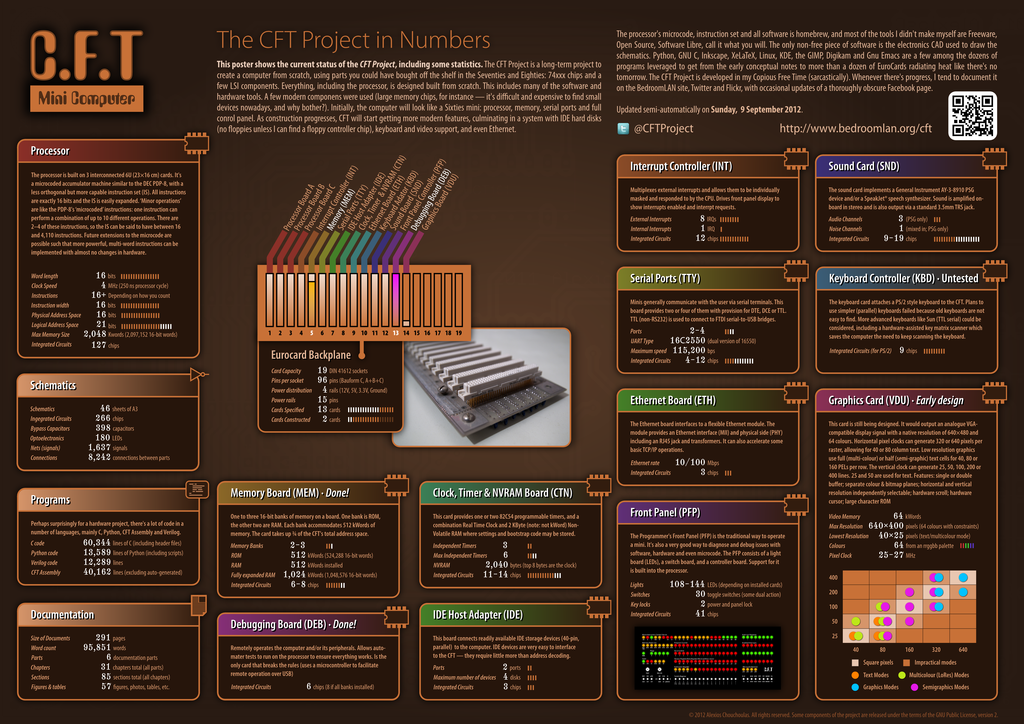

CFT Progress Poster (September 2012)
Download or view the poster in PDF. If you're that weird, you could even print it. It's all vector graphics and should print at huge sizes.
ViewDownload
